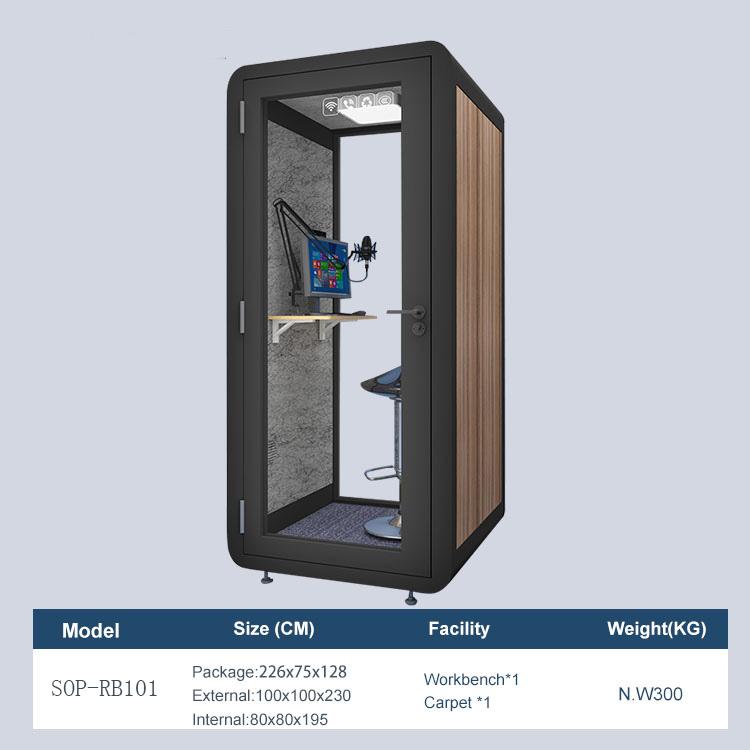

Price:
$1100-$1700
Model:
SOP-RB101

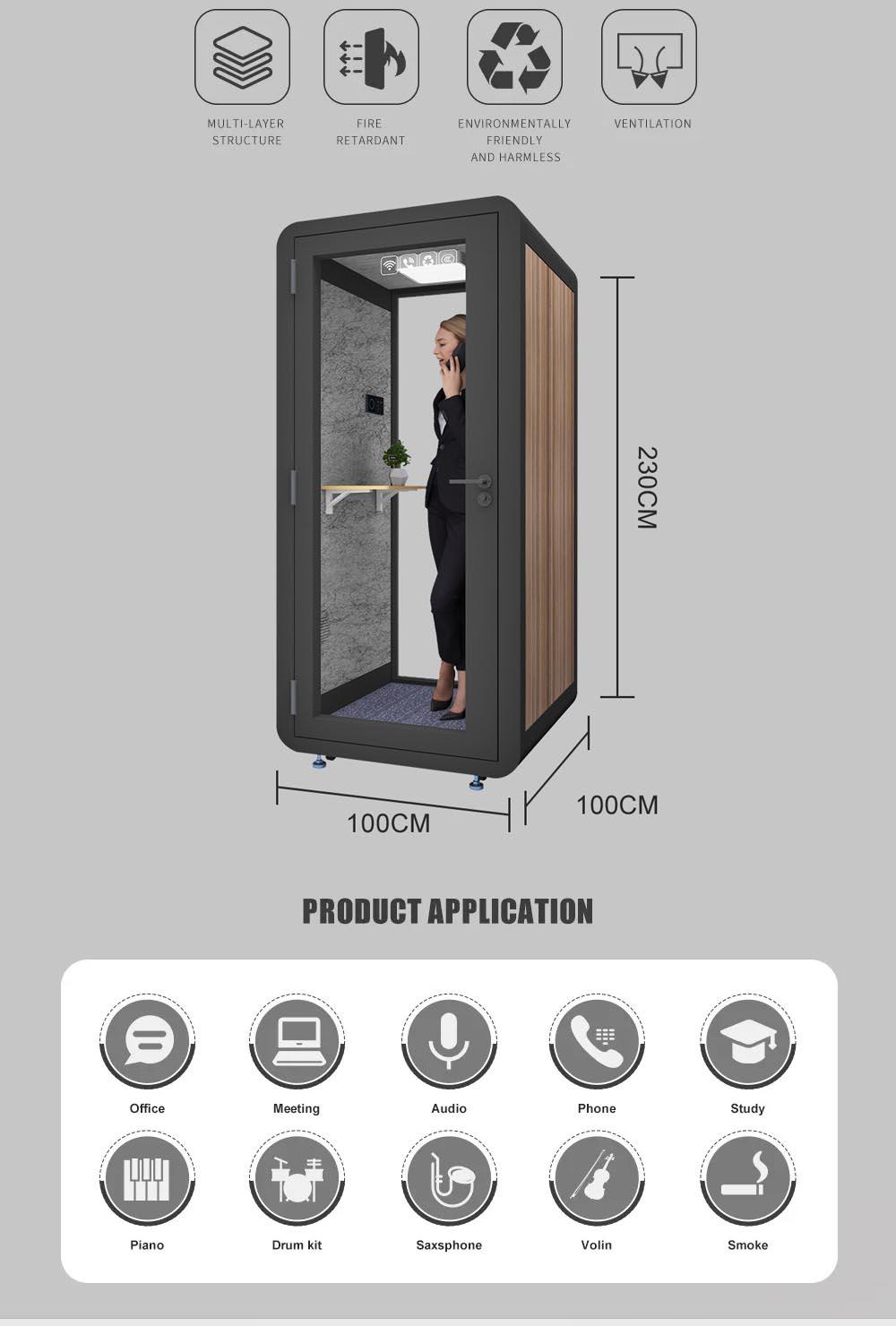

Exterior Size
1000x1000x2300mm
Internal Size:
800x800x1950mm
Material:
high-quality sheet metal
Power:
110V-240V/50HZ
Light:
18W three-color energy-saving lighting system
Voltage:
110-240V
Weight:
300kg
Certification:
ISO CE
Material of Sound Recording Booth
To ensure optimal soundproofing and acoustic performance, our sound recording booth is constructed using high-quality materials carefully selected for their sound-absorbing and insulating properties.
1.5mm High-Quality Sheet Metal: This durable metal provides the structural integrity of the booth, offering excellent rigidity and resistance to wear and tear. It also contributes to the overall soundproofing of the enclosure.
22mm Hollow Soundproof Tempered Glass: The tempered glass panels offer superior sound insulation and transparency, allowing for visual access while maintaining acoustic isolation. The hollow design further enhances sound absorption.
15mm Fireproof and Soundproof Board: This specialized board combines fire resistance with excellent soundproofing capabilities. It helps to reduce the transmission of sound waves and provides an added layer of safety.
12mm Polyester Fiber Sound-Absorbing Board: The polyester fiber material effectively absorbs sound waves, reducing echoes and reverberations within the booth. This contributes to a cleaner and more defined sound recording environment.
50mm Environmentally Friendly Soundproof Cotton: This thick layer of soundproof cotton provides exceptional sound insulation and absorption. It acts as a barrier to external noise and helps to create a quiet and focused recording space.
Train-Grade Cabin Soundproof Glass
Freely assembled mobile sound insulation body, high security glass After many material tests Excellent sound insulation and safety data your best choice
Installation Process and Time
Installation Time:
Approximately 2 hours for a single unit (with a 2-person team)
Installation Requirements:
Elevator Access:
If the entire machine can fit into the elevator, the installation process is significantly simplified.
Once the machine is in place, it can be operational immediately by simply plugging it into a power source.
Manual Installation (if elevator access is limited):
If the machine cannot be transported via elevator, a manual installation process will be required.
This process may involve disassembling the machine into smaller components for transport and subsequent reassembly.
Detailed installation drawings and step-by-step instructions will be provided to guide the installation team.
In some cases, video guides may also be available to provide visual assistance.
Superior Soundproofing with 10 cm Thick Walls
Featuring integrated sound absorption, sound insulation, and shock absorption technologies, our walls, with a thickness of 10 cm, effectively block out external noise and create a serene, distraction-free environment for optimal recording and listening experiences.
Material |
1.5mm high-quality sheet metal, 22mm hollow soundproof tempered glass, 15mm fireproof and soundproof board, 12mm polyester fiber sound-absorbing board, 50mm environmentally friendly soundproof cotton |
Size |
External dimensions: 1.0x1.0x2.3m. Internal size; 0.8x0.8x1.95m |
Usage |
Telephone booth, recording studio, small instrument practice room, live broadcast room, study room, studio. |
Ventilation system |
Two 120mm oil-bearing ventilators (12vdc) 1500+10%RPM speed/3.24W. |
Lighting |
18W three-color energy-saving lighting system |
Additional supporting facilities |
15mm desktop board, carpet, locker, aluminum alloy door lock. |
Sound insulation |
40dB(±10dB) |
Power supply |
110V-240V/50HZ |
